材质：304/L
提供攻牙孔与钻孔规格
*注：316LN材料可根据要求提供。提供攻牙孔与钻孔规格

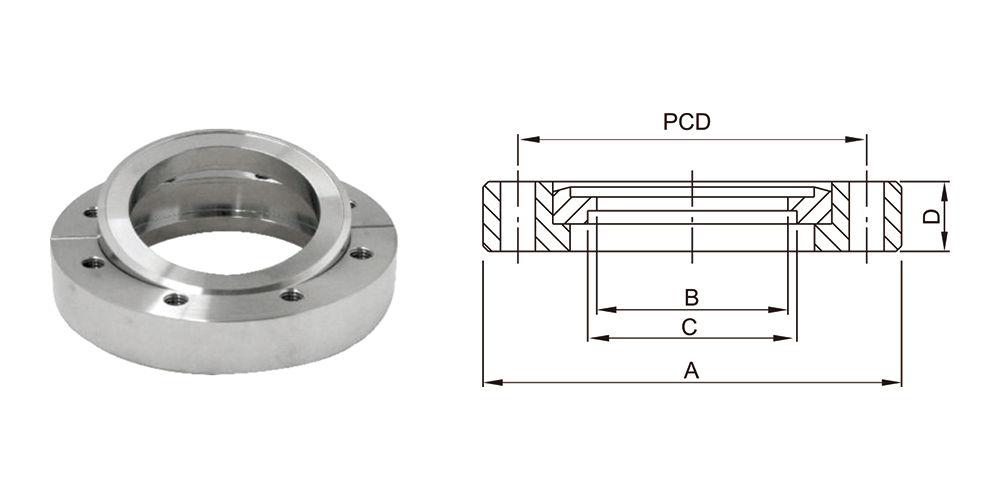

| Catalogue PN | Type | Flange-Tube | A (mm) |
B (mm) |
C (mm) |
D (mm) |
PCD (mm) |
Bolt Holes |
Diameter / Thread (mm) |
| CF-BF-133x050R | Thru Holes | CF1.33"-0.50" | 33.70 | 12.83 | 12.83 | 7.60 | 26.97 | 6 | 4.37 |
| CF-BF-133x050RT | Tapped | CF1.33"-0.50" | 33.70 | 12.83 | 12.83 | 7.60 | 26.97 | 6 | 8-32 |
| CF-BF-133x050RTM | Tapped(M) | CF1.33"-0.50" | 33.70 | 12.83 | 12.83 | 7.60 | 26.97 | 6 | M4 |
| CF-BF-133x075R | Thru Holes | CF1.33"-0.75" | 33.70 | 16.00 | 19.30 | 7.60 | 26.97 | 6 | 4.37 |
| CF-BF-133X075RT | Tapped | CF1.33"-0.75" | 33.70 | 16.00 | 19.30 | 7.60 | 26.97 | 6 | 8-32 |
| CF-BF-133x075RTM | Tapped(M) | CF1.33"-0.75" | 33.70 | 16.00 | 19.30 | 7.60 | 26.97 | 6 | M4 |
| CF-BF-212x100R | Thru Holes | CF2.12"-1.00" | 53.80 | 23.90 | 25.91 | 11.90 | 41.28 | 4 | 6.73 |
| CF-BF-212x100RT | Tapped | CF2.12"-1.00" | 53.80 | 23.90 | 25.91 | 11.90 | 41.28 | 4 | 1/4-28 |
| CF-BF-212x100RTM | Tapped(M) | CF2.12"-1.00" | 53.80 | 23.90 | 25.91 | 11.90 | 41.28 | 4 | M6 |
| CF-BF-275x075R | Thru Holes | CF2.75"-0.75" | 69.30 | 16.00 | 19.30 | 12.70 | 58.72 | 6 | 6.73 |
| CF-BF-275x075RT | Tapped | CF2.75"-0.75" | 69.30 | 16.00 | 19.30 | 12.70 | 58.72 | 6 | 1/4-28 |
| CF-BF-275x075RTM | Tapped(M) | CF2.75"-0.75" | 69.30 | 16.00 | 19.30 | 12.70 | 58.72 | 6 | M6 |
| CF-BF-275x150R | Thru Holes | CF2.75"-1.50" | 69.30 | 36.60 | 38.61 | 12.70 | 58.72 | 6 | 6.73 |
| CF-BF-275x150RT | Tapped | CF2.75"-1.50" | 69.30 | 36.60 | 38.61 | 12.70 | 58.72 | 6 | 1/4-28 |
| CF-BF-275x150RTM | Tapped(M) | CF2.75"-1.50" | 69.30 | 36.60 | 38.61 | 12.70 | 58.72 | 6 | M6 |
| CF-BF-338x200R | Thru Holes | CF3.38"-2.00" | 85.30 | 49.30 | 51.31 | 17.40 | 72.39 | 8 | 8.43 |
| CF-BF-338x200RT | Tapped | CF3.38"-2.00" | 85.30 | 49.30 | 51.31 | 17.40 | 72.39 | 8 | 5/16-24 |
| CF-BF-338x200RTM | Tapped(M) | CF3.38"-2.00" | 85.30 | 49.30 | 51.31 | 17.40 | 72.39 | 8 | M8 |
| CF-BF-450x250R | Thru Holes | CF4.50"-2.50" | 113.50 | 62.00 | 64.01 | 19.10 | 92.15 | 8 | 8.43 |
| CF-BF-450x250RT | Tapped | CF4.50"-2.50" | 113.50 | 62.00 | 64.01 | 19.10 | 92.15 | 8 | 5/16-24 |
| CF-BF-450x250RTM | Tapped(M) | CF4.50"-2.50" | 113.50 | 62.00 | 64.01 | 19.10 | 92.15 | 8 | M8 |
| CF-BF-462x300R | Thru Holes | CF4.62"-3.00" | 117.00 | 74.70 | 76.71 | 20.60 | 102.36 | 10 | 8.43 |
| CF-BF-462x300RT | Tapped | CF4.62"-3.00" | 117.00 | 74.70 | 76.71 | 20.60 | 102.36 | 10 | 5/16-24 |
| CF-BF-462x300RTM | Tapped(M) | CF4.62"-3.00" | 117.00 | 74.70 | 76.71 | 20.60 | 102.36 | 10 | M8 |
| CF-BF-600x400R | Thru Holes | CF6.00"-4.00" | 151.60 | 99.60 | 102.11 | 21.30 | 130.25 | 16 | 8.43 |
| CF-BF-600x400RT | Tapped | CF6.00"-4.00" | 151.60 | 99.60 | 102.11 | 21.30 | 130.25 | 16 | 5/16-24 |
| CF-BF-600x400RTM | Tapped(M) | CF6.00"-4.00" | 151.60 | 99.60 | 102.11 | 21.30 | 130.25 | 16 | M8 |
| CF-BF-675x500R | Thru Holes | CF6.75"-5.00" | 170.69 | 125.00 | 127.51 | 21.30 | 151.61 | 18 | 8.43 |
| CF-BF-675x500RT | Tapped | CF6.75"-5.00" | 170.69 | 125.00 | 127.51 | 21.30 | 151.61 | 18 | 5/16-24 |
| CF-BF-675x500RTM | Tapped(M) | CF6.75"-5.00" | 170.69 | 125.00 | 127.51 | 21.30 | 151.61 | 18 | M8 |
| CF-BF-800x600R | Thru Holes | CF8.00"-6.00" | 202.44 | 150.40 | 152.91 | 23.90 | 181.05 | 20 | 8.43 |
| CF-BF-800x600RT | Tapped | CF8.00"-6.00" | 202.44 | 150.40 | 152.91 | 23.90 | 181.05 | 20 | 5/16-24 |
| CF-BF-800x600RTM | Tapped(M) | CF8.00"-6.00" | 202.44 | 150.40 | 152.91 | 23.90 | 181.05 | 20 | M8 |
| CF-BF-1000x800R | Thru Holes | CF10.0"-8.00" | 253.24 | 200.40 | 203.71 | 24.60 | 231.85 | 24 | 8.43 |
| CF-BF-1000x800RT | Tapped | CF10.0"-8.00" | 253.24 | 200.40 | 203.71 | 24.60 | 231.85 | 24 | 5/16-24 |
| CF-BF-1000x800RTM | Tapped(M) | CF10.0"-8.00" | 253.24 | 200.40 | 203.71 | 24.60 | 231.85 | 24 | M8 |
| CF-BF-1200x1000R | Thru Holes | CF12.0"-10.0" | 304.04 | 250.95 | 254.51 | 25.90 | 283.97 | 32 | 8.43 |
| CF-BF-1200x1000RT | Tapped | CF12.0"-10.0" | 304.04 | 250.95 | 254.51 | 25.90 | 283.97 | 32 | 5/16-24 |
| CF-BF-1200x1000RTM | Tapped(M) | CF12.0"-10.0" | 304.04 | 250.95 | 254.51 | 25.90 | 283.97 | 32 | M8 |
| CF-BF-1325x1000R | Thru Holes | CF13.25"-10.0" | 335.79 | 250.95 | 254.51 | 28.45 | 306.32 | 30 | 10.49 |
| CF-BF-1325x1000RT | Tapped | CF13.25"-10.0" | 335.79 | 250.95 | 254.51 | 28.45 | 306.32 | 30 | 3/8-24 |
| CF-BF-1325x1000RTM | Tapped(M) | CF13.25"-10.0" | 335.79 | 250.95 | 254.51 | 28.45 | 306.32 | 30 | M10 |
| CF-BF-1400x1200R | Thru Holes | CF14.00"-12.0" | 354.84 | 301.75 | 305.31 | 28.45 | 325.37 | 30 | 10.49 |
| CF-BF-1400x1200RT | Tapped | CF14.00"-12.0" | 354.84 | 301.75 | 305.31 | 28.45 | 325.37 | 30 | 3/8-24 |
| CF-BF-1400x1200RTM | lapped(M) | CF14.00"-12.0" | 354.84 | 301.75 | 305.31 | 28.45 | 325.37 | 30 | M10 |
| CF-BF-1650x1400R | Thru Holes | CF16.50"-14.0" | 418.34 | 352.55 | 356.11 | 28.45 | 388.87 | 36 | 10.49 |
| CF-BF-1650x1400RT | Tapped | CF16.50"-14.0" | 418.34 | 352.55 | 356.11 | 28.45 | 388.87 | 36 | 3/8-24 |
| CF-BF-1650x1400RTM | Tapped(M) | CF16.50"-14.0" | 418.34 | 352.55 | 356.11 | 28.45 | 388.87 | 36 | M10 |
