材质：304/L
*注：316LN材料可根据要求提供。

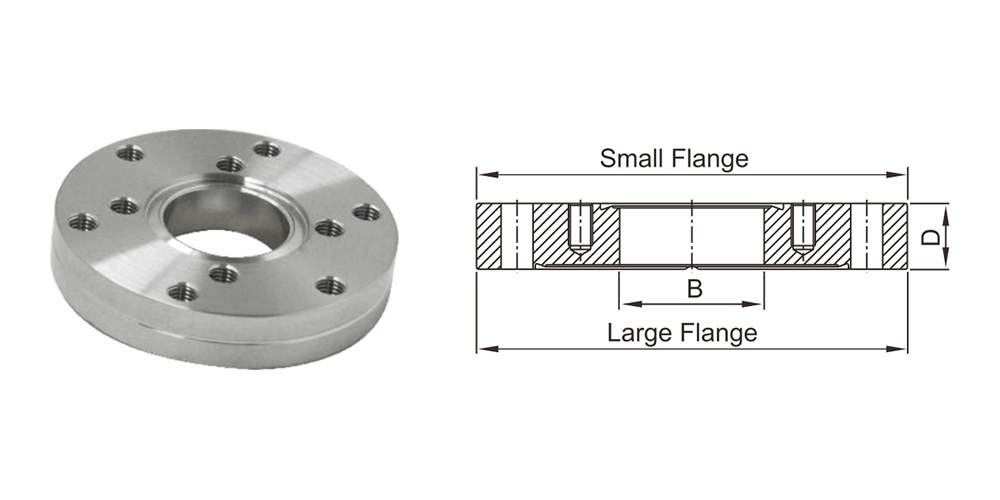

The last digit of part number means optional thread types shown as follows.*注：316LN材料可根据要求提供。
| Catalogue PN | Large Flange | Small Flange | Tube Size | B (mm) |
D (mm) |
| CF-ZL-212x133 N | CF2.12" Tapped holes | CF1.33" Tapped holes | 3/4" | 15.75 | 11.90 |
| CF-ZL-275x133 Z | CF2.75" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 12.70 |
| CF-ZL-275x212 N | CF2.75" Tapped holes | CF2.12" Tapped holes | 1.0" | 25.40 | 12.70 |
| CF-ZL-338x133 Z | CF3.38" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 16.00 |
| CF-ZL-338x212 Z | CF3.38" Thru holes | CF2.12" Tapped holes | 1.0" | 25.40 | 16.00 |
| CF-ZL-338x275 N | CF3.38" Tapped holes | CF2.75" Tapped holes | 1.5" | 38.10 | 16.00 |
| CF-ZL-450x133 Z | CF4.50" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 17.40 |
| CF-ZL-450x212 Z | CF4.50" Thru holes | CF2.12" Tapped holes | 1.0" | 25.40 | 17.40 |
| CF-ZL-450x275 Z | CF4.50" Thru holes | CF2.75" Tapped holes | 1.5" | 38.10 | 17.40 |
| CF-ZL-450x338 N | CF4.50" Tapped holes | CF3.38" Tapped holes | 2.0" | 50.80 | 17.40 |
| CF-ZL-462x133 Z | CF4.62" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 19.10 |
| CF-ZL-462x212 Z | CF4.62" Thru holes | CF2.12" Tapped holes | 1.0" | 25.40 | 19.10 |
| CF-ZL-462x275 Z | CF4.62" Thru holes | CF2.75" Tapped holes | 1.5" | 38.10 | 19.10 |
| CF-ZL-462x338 Z | CF4.62" Thru holes | CF3.38" Tapped holes | 2.0" | 50.80 | 19.10 |
| CF-ZL-600x133 Z | CF6.00" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 19.80 |
| CF-ZL-600x212 Z | CF6.00" Thru holes | CF2.12" Tapped holes | 1.0" | 25.40 | 19.80 |
| CF-ZL-600x275 Z | CF6.00" Thru holes | CF2.75" Tapped holes | 1.5" | 38.10 | 19.80 |
| CF-ZL-600x338 Z | CF6.00" Thru holes | CF3.38" Tapped holes | 2.0" | 50.80 | 19.80 |
| CF-ZL-600x450 Z | CF6.00" Thru holes | CF4.50" Tapped holes | 2.5" | 63.50 | 19.80 |
| CF-ZL-600x462 N | CF6.00" Tapped holes | CF4.62" Tapped holes | 3.0" | 76.20 | 19.80 |
| CF-ZL-675x275 Z | CF6.75" Thru holes | CF2.75" Tapped holes | 1.5" | 38.10 | 21.34 |
| CF-ZL-675x450 Z | CF6.75" Thru holes | CF4.50" Tapped holes | 2.5" | 63.50 | 21.34 |
| CF-ZL-800x133 Z | CF8.00" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 22.35 |
| CF-ZL-800x275 Z | CF8.00" Thru holes | CF2.75" Tapped holes | 1.5" | 38.10 | 22.35 |
| CF-ZL-800x450 Z | CF8.00" Thru holes | CF4.50" Tapped holes | 2.5" | 63.50 | 22.35 |
| CF-ZL-800x600 Z | CF8.00" Thru holes | CF6.00" Tapped holes | 4.0" | 101.60 | 22.35 |
| CF-ZL-1000x133 Z | CF10.00" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 24.60 |
| CF-ZL-1000x275 Z | CF10.00" Thru holes | CF2.75" Tapped holes | 1.5" | 38.10 | 24.60 |
| CF-ZL-1000x450 Z | CF10.00" Thru holes | CF4.50" Tapped holes | 2.5" | 63.50 | 24.60 |
| CF-ZL-1000x600 Z | CF10.00" Thru holes | CF6.00" Tapped holes | 4.0" | 101.60 | 24.60 |
| CF-ZL-1000x800 Z | CF10.00" Thru holes | CF8.00" Tapped holes | 6.0" | 152.40 | 24.60 |
| CF-ZL-1325x133 Z | CF13.25" Thru holes | CF1.33" Tapped holes | 3/4" | 15.75 | 28.45 |
| CF-ZL-1325x275 Z | CF13.25" Thru holes | CF2.75" Tapped holes | 1.5" | 38.10 | 28.45 |
| CF-ZL-1325x450 Z | CF13.25" Thru holes | CF4.50" Tapped holes | 2.5" | 63.50 | 28.45 |
| CF-ZL-1325x600 Z | CF13.25" Thru holes | CF6.00" Tapped holes | 4.0" | 101.60 | 28.45 |
| CF-ZL-1325x800 Z | CF13.25" Thru holes | CF8.00" Tapped holes | 6.0" | 152.40 | 28.45 |
| CF-ZL-1325x1000 Z | CF13.25" Thru holes | CF10.00" Tapped holes | 10.0" | 254.00 | 28.45 |
T: Both Small Flange and Large Flange are Metric Tapped holes.
N: Both Small Flange and Large Flange are Inch Tapped holes.
Y: Small Flange(Metric tapped holes)+Large Flange(Thru holes)
Z: Small Flange(Inch tapped holes)+Large Flange(Thru holes)
