材质：304/L
*注：316LN材料可根据要求提供。通孔规格

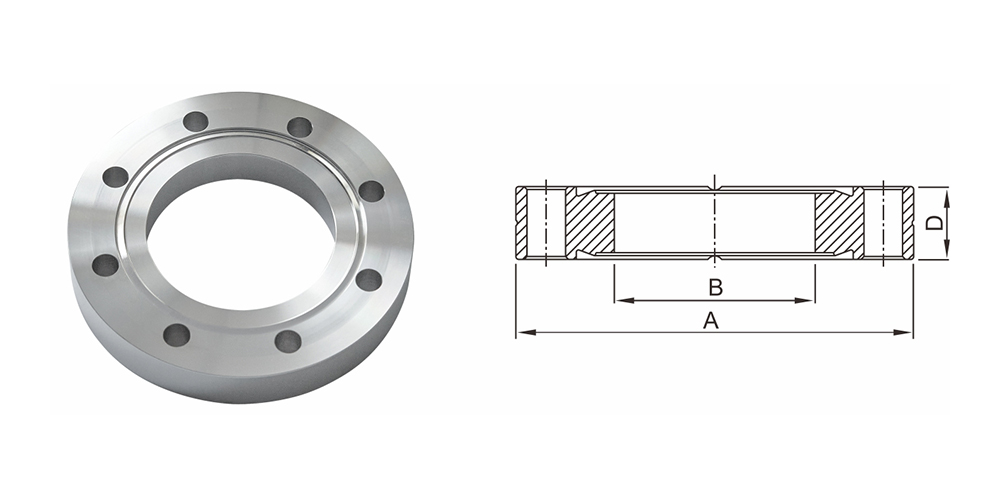

| Catalogue PN | Type | Flange-Tube | A (mm) |
B (mm) |
D (mm) |
Bolt Holes |
Diameter / Thread (mm) |
| CF-DF-133 | Blank | CF1.33” | 33.70 | - | 7.60 | 6 | 4.37 |
| CF-DF-133x075 | Bored | CF1.33” -3/4” | 33.70 | 15.88 | 7.60 | 6 | 4.37 |
| CF-DF-212 | Blank | CF2.12” | 53.80 | - | 11.90 | 4 | 6.73 |
| CF-DF-212x100 | Bored | CF2.12” -1.0” | 53.80 | 25.65 | 11.90 | 4 | 6.73 |
| CF-DF-275 | Blank | CF2.75” | 69.30 | - | 12.70 | 6 | 6.73 |
| CF-DF-275x150 | Bored | CF2.75” -1.5” | 69.30 | 38.35 | 12.70 | 6 | 6.73 |
| CF-DF-338 | Blank | CF3.38” | 85.30 | - | 16.00 | 8 | 8.43 |
| CF-DF-338x200 | Bored | CF3.38” - 2.0” | 85.30 | 51.05 | 16.00 | 8 | 8.43 |
| CF-DF-450 | Blank | CF4.50” | 113.50 | - | 17.40 | 8 | 8.43 |
| CF-DF-450x250 | Bored | CF4.50” - 2.5” | 113.50 | 63.75 | 17.40 | 8 | 8.43 |
| CF-DF-462 | Blank | CF4.62” | 117.00 | - | 19.10 | 10 | 8.43 |
| CF-DF-462x300 | Bored | CF4.62” - 3.0” | 117.00 | 79.71 | 19.10 | 10 | 8.43 |
| CF-DF-600 | Blank | CF6.00” | 151.60 | - | 19.80 | 16 | 8.43 |
| CF-DF-600x400 | Bored | CF6.00” - 4.0” | 151.60 | 101.85 | 19.80 | 16 | 8.43 |
| CF-DF-675 | Blank | CF6.75” | 170.69 | - | 21.34 | 18 | 8.43 |
| CF-DF-675x500 | Bored | CF6.75” - 5.0” | 170.69 | 127.25 | 21.34 | 18 | 8.43 |
| CF-DF-800 | Blank | CF8.00” | 202.44 | - | 22.35 | 20 | 8.43 |
| CF-DF-800x600 | Bored | CF8.00” - 6.0” | 202.44 | 152.65 | 22.35 | 20 | 8.43 |
| CF-DF-1000 | Blank | CF10.0” | 253.24 | - | 24.60 | 24 | 8.43 |
| CF-DF-1000x800 | Bored | CF10.0” - 8.0” | 253.24 | 203.45 | 24.60 | 24 | 8.43 |
| CF-DF-1325 | Blank | CF13.25” | 335.79 | - | 28.45 | 30 | 10.49 |
| CF-DF-1325x1000 | Bored | CF13.25” - 10” | 335.79 | 254.50 | 28.45 | 30 | 10.49 |
